CS 2132T

The CS 2132T is a large format tri-amplified screen speaker; product specifications are detailed below

HIGHLIGHTS

  • 2100 Series: 2 models
  • 3 way large format speakers for triamp operation
  • High SPL low, mid, and HF sections
  • Time-aligned compression and midrange drivers provide accurate imaging and minimum phase cancellations.
  • Tight directivity control and angled construction of midrange horn provides uniform coverage.
  • Specially configured midrange phase plugs result in minimum phase cancellations resulting in intelligibility of vocals.
  • The mathematically-designed horn are keep distortion within limits.
  • Dual 15” LF enclosure available in different power ratings for different hall sizes.
  • All three sections – LF, MF and HF are optimized to provide flat frequency response inside a cinema hall (considering the influence of hall acoustics).
  • Sturdy, compact cabinet with shallow profile
  • Controlled directivity with provision to tilt to the horn

SPECIFICATIONS

DESCRIPTION 3 way bi-ampilfied screen channel speaker with dual midrange horn
ENCLOSURE LF: Highly braced particle board & MDF; M/HF Horn: Moulded FRP
TRANSDUCER COMPLEMENTS: HF 1 x 1.5" horn loaded
TRANSDUCER COMPLEMENTS: MF 4 x 6.5" horn loaded
TRANSDUCER COMPLEMENTS: LF 2 x 15"
NOMINAL COVERAGE H 90° x V -30°/+20°
NOMINAL IMPEDANCE LF: 4 Ohm, MF: 8 Ohm, HF: 8 Ohm
SENSITIVITY (1 w 1m) LF: 101dB; MF:109dB; HF:115dB
FREQUENCY RANGE 40 Hz ~ 17 kHz (-3 dB); 30 Hz ~ 18.5 kHz (-10 dB)
PROGRAM POWER LF: 2400W; MF: 800W HF: 170W
CROSSOVER FREQUENCY Recommended 400 Hz, 1.3 kHz
INPUTS Screw type barrier strip
CONTINUOUS POWER HANDLING LF: 1200W; MF: 400W HF: 85W
COLOURS Black

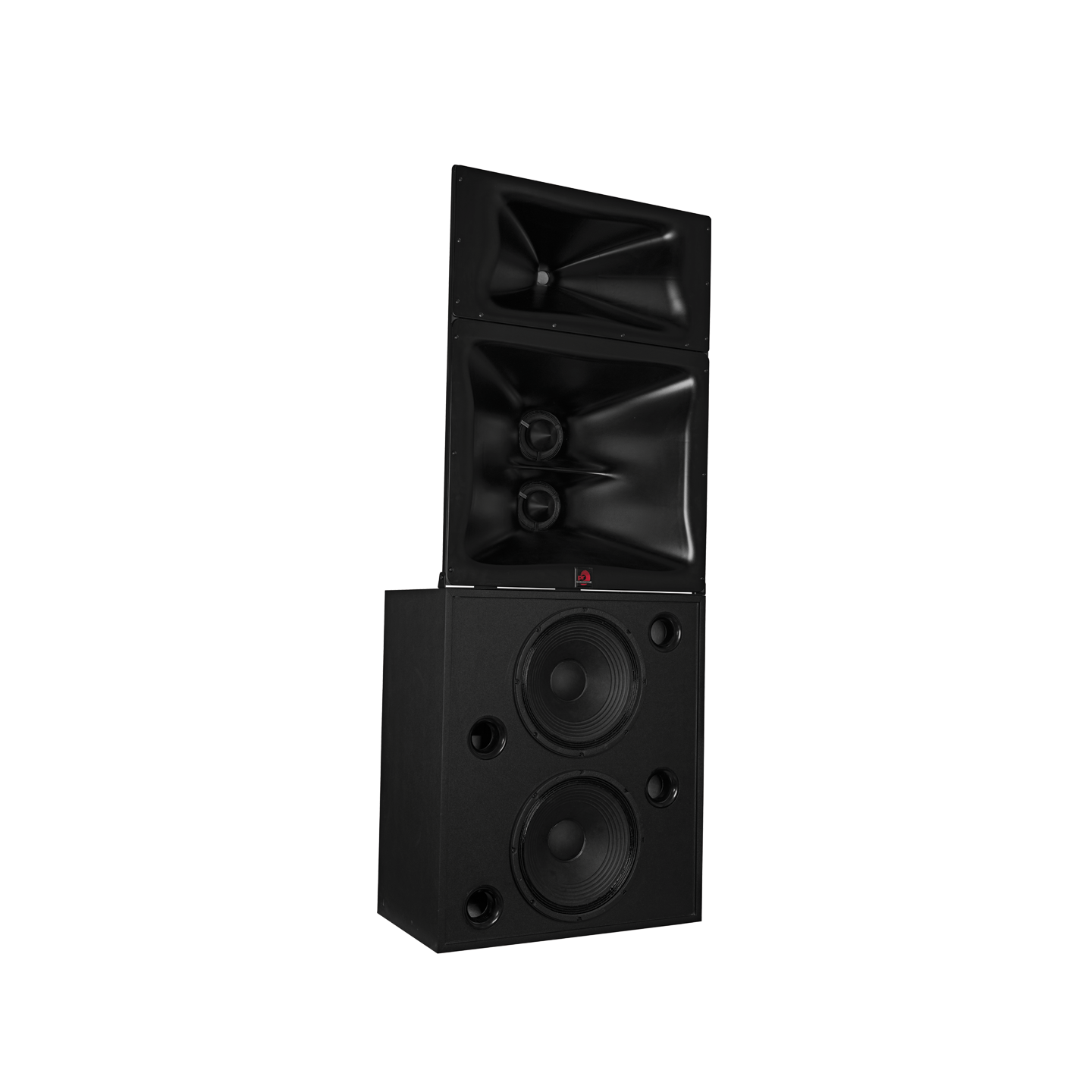

CS 2131B

The CS 2131 B is a 3 way , biamplified screen speaker; product highlights and specifications are detailed below

HIGHLIGHTS

  • 3 way design with bi-amp modes
  • System is designed to suit both in-wall and platform installations. Shallow profile of the system relieves the need for a large installation space behind the cinema screen.
  • Time-aligned compression and midrange drivers provide accurate imaging and minimum phase cancellations.
  • Tight directivity control and angled construction of midrange horn provides uniform coverage.
  • Specially con gured midrange phase plugs result in minimum phase cancellations resulting in intelligibility of vocals.
  • The mathematically-designed horn are keep distortion within limits.
  • Dual 15” LF enclosure available in different power ratings for different hall sizes.
  • All three sections – LF, MF and HF are optimized to provide at frequency response inside a cinema hall (considering the in uence of hall acoustics).
  • Sturdy, compact cabinet with shallow profile
  • Controlled directivity with provision to tilt to the horn

SPECIFICATIONS

DESCRIPTION 3 way bi-ampilfied screen channel speaker
ENCLOSURE LF: Highly braced particle board & MDF; M/HF Horn: Moulded FRP
TRANSDUCER COMPLEMENTS: HF 1 x 1.5" horn loaded
TRANSDUCER COMPLEMENTS: MF 2 x 6.5" horn loaded
TRANSDUCER COMPLEMENTS: LF 2 x 15"
NOMINAL COVERAGE H 90° x V -30°/+20°
NOMINAL IMPEDANCE LF: 4 Ohm, MF+HF: 8 Ohm
SENSITIVITY (1 w 1m) LF: 101dB; MF + HF: 103dB
FREQUENCY RANGE 40 Hz ~ 17 kHz (-3 dB); 30 Hz ~ 18.5 kHz (-10 dB)
PROGRAM POWER LF: 1600W; MF+HF: 500W
CROSSOVER FREQUENCY 400 Hz (active); 1.3 kHz (passive)
INPUTS Screw type barrier strip
CONTINUOUS POWER HANDLING LF: 800W; MF + HF: 200W
COLOURS Black

CS 2131T

The CS 2131T is a 3 way, tramplified screen speaker; product highlights and specifications are detailed below

HIGHLIGHTS

  • 3 way design with bi-amp or triamp modes
  • System is designed to suit both in-wall and platform installations. Shallow profile of the system relieves the need for a large installation space behind the cinema screen.
  • Time-aligned compression and midrange drivers provide accurate imaging and minimum phase cancellations.
  • Tight directivity control and angled construction of midrange horn provides uniform coverage.
  • Specially con gured midrange phase plugs result in minimum phase cancellations resulting in intelligibility of vocals.
  • The mathematically-designed horn are keep distortion within limits.
  • Dual 15” LF enclosure available in different power ratings for different hall sizes.
  • All three sections – LF, MF and HF are optimized to provide at frequency response inside a cinema hall (considering the in uence of hall acoustics).
  • Sturdy, compact cabinet with shallow profile
  • Controlled directivity with provision to tilt to the horn

SPECIFICATIONS

DESCRIPTION 3 way tri-ampilfied screen channel speaker
ENCLOSURE LF: Highly braced particle board & MDF; M/HF Horn: Moulded FRP
TRANSDUCER COMPLEMENTS: HF 1 x 1.5" horn loaded
TRANSDUCER COMPLEMENTS: MF 2 x 6.5" horn loaded
TRANSDUCER COMPLEMENTS: LF 2 x 15"
NOMINAL COVERAGE H 90° x V -30°/+20°
NOMINAL IMPEDANCE LF: 4 Ohm, MF: 16 Ohm, HF: 8 Ohm
SENSITIVITY (1 w 1m) LF: 101dB; MF:107dB; HF:115dB
FREQUENCY RANGE 40 Hz ~ 17 kHz (-3 dB); 30 Hz ~ 18.5 kHz (-10 dB)
PROGRAM POWER LF: 1600W; MF: 400W, HF: 170W
CROSSOVER FREQUENCY Recommended 400 Hz; 1.3 kHz
INPUTS Screw type barrier strip
CONTINUOUS POWER HANDLING LF: 800W; MF: 200W, HF: 85W
COLOURS Black

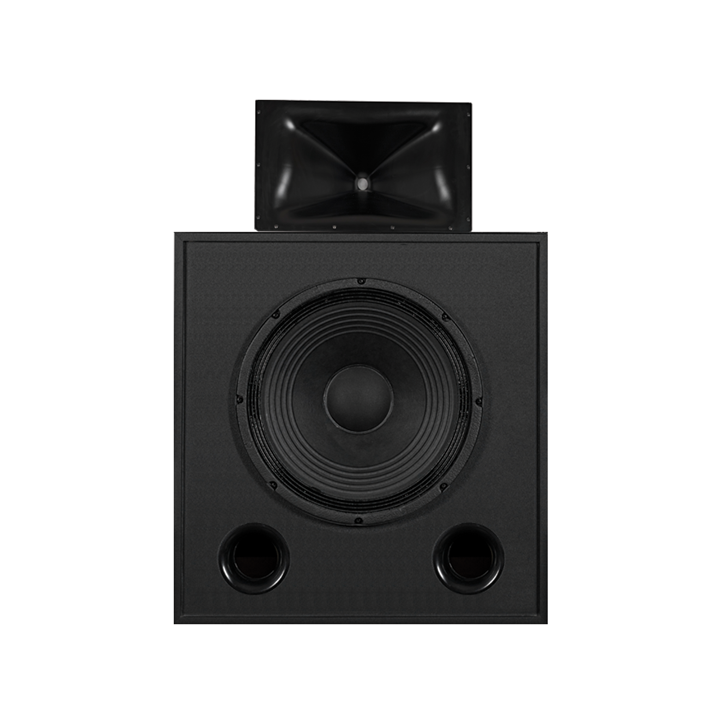

CS 1015

The CS 1000 series comprises 2 way speakers that are designed for L, C, R main channel applications. Compact, yet powerful, they are ideal for the smallest cinema screens that require detailed, full-bodied sound from main channels. The drivers are time-aligned and there is tight directivity control. Due to extended LF response, integration with the subwoofer channel is seamless. Extensive power handling tests ensure hassle free , minimum maintenance operations.

HIGHLIGHTS

  • 2 models
  • 2 way design with inbuilt crossover
  • Smooth and wide frequency response
  • Sturdy, compact cabinet with shallow profile
  • Controlled directivity with provision to tilt to the horn

SPECIFICATIONS

DESCRIPTION 2 way screen channel speaker
ENCLOSURE: LF Highly braced particle board & plywood
ENCLOSURE : M/HF HORN Plastic
TRANSDUCERS: LF 1 x 15"
TRANSDUCERS: HF, MF 1 x 1" horn loaded
FREQUENCY RANGE (- 3dB) 55Hz ~17kHz
FREQUENCY RANGE (-10dB) 50Hz ~ 18kHz
SENSITIVITY (1W/1M) 98dB
NOMINAL IMPEDANCE  8Ω
INPUTS Spring Loaded binding post
POWER HANDLING (CONTINUOUS)  400W
POWER HANDLING (PROGRAM)  800W
NOMINAL COVERAGE H x V 90° x 50°
CROSSOVER FREQUENCY 2.6kHz

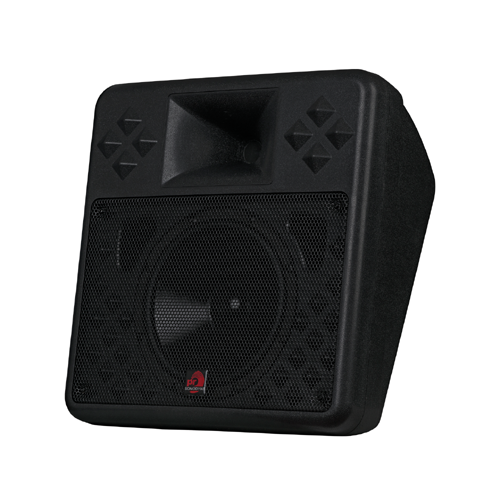

CS-2322

The 2300 series comprises 2 speakers to meet the multichannel surround sound needs for 5.1 and Atmos screens. Despite being small in size, these speakers are powerful and precise. Elaborate crossover designs enable the high quality transducers to reproduce a detailed response that matches the main channels tonally. The compact cabinets are plastic moulded with tilted front baf es for precise vertical pattern control. Wall mounting brackets are included

HIGHLIGHTS

  • Equipped with precise pattern control HF waveguide to provide uniform coverage throughout the audience seating areas.
  • Linear on-axis anechoic frequency response despite angled cabinet.
  • High power handling and high SPL help reduce the number of speakers required for a particular SPL.
  • Appropriately tilted front baffle and tight vertical coverage ensure focused, reflection-free operation.
  • Sturdy light-weight injection-moulded industrial grade plastic cabinet with convenient mounting points and easy to access terminals.

SPECIFICATIONS

DESCRIPTION Cinema surround
ENCLOSURE Injection moulded industrial grade plastic
LOW FREQUENCY TRANSDUCER NOMINAL DIAMETER 250mm (10”)
HIGH FREQ TRANSDUCER NOMINAL DIAMETER 25mm (1”) exit compression driver
DOWNWARD FIRING ANGLE Nominal 20° when mounted ush on back panel
NOMINAL COVERAGE 100° x 90°
NOMINAL IMPEDANCE 8Ω
SENSITIVITY (1 w 1m) 95dB-SPL half-space/wall-mounted
FREQUENCY RANGE 50Hz ~ 18kHz (-10dB)
CONTINUOUS POWER HANDLING 200W
PROGRAM POWER 400W
INPUT CONNECTIONS Binding posts
COLOURS Black
DIMENSIONS (HxWxD) mm 457 x 457 x 260

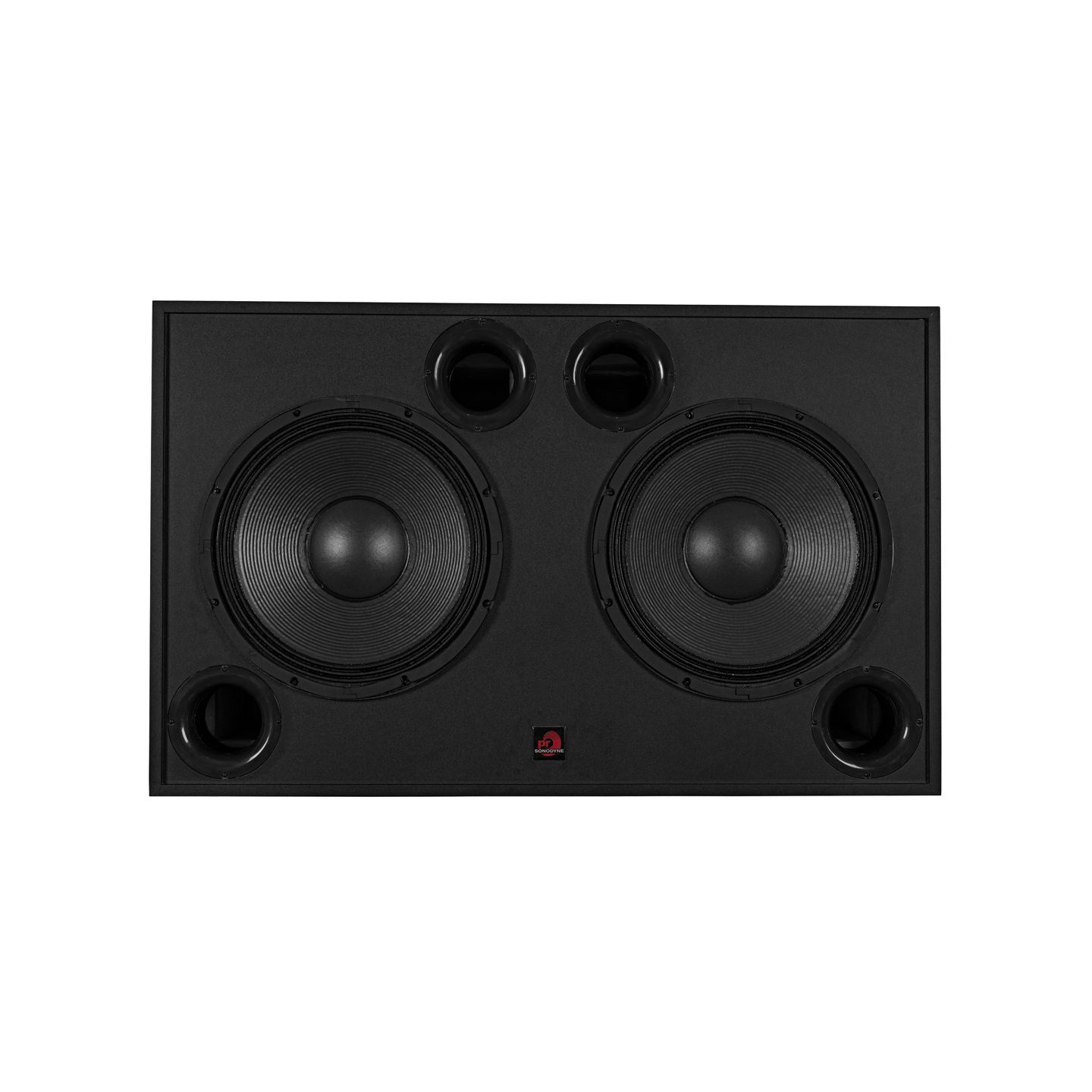

CS 2202

With a channel dedicated to it, the subwoofer is a critical sonic element in the cinema soundstage. Digital formats demand dynamic ultra-low frequency response. With high excursion transducers mounted in sturdy cabinets the 2200 Series models are up to the task. The 4” voice coils transducers are subjected to extreme power tests in real world conditions to ensure that they can continuously reproduce the lowest octaves without fault or fatigue.

HIGHLIGHTS

  • High excursion subwoofer drivers enable reproduction of the lowest frequencies at high SPL with minimum distortion.
  • Large flared ports reduce power compression and wind noise to insignificant levels.
  • Heavily braced cabinet eliminates cabinet vibrations at bass frequencies ensuring distortion-free, uncoloured sound.
  • Custom design of the driver motor structure ensures continuous operation at high SPL.

SPECIFICATIONS

DESCRIPTION Cinema subwoofer
ENCLOSURE Highly braced particle board & MDF
TRANSDUCER COMPLEMENTS 2 x 18"
NOMINAL IMPEDANCE 4 Ohm
SENSITIVITY (1 w 1m) 101 dB
FREQUENCY RESPONSE 35 Hz (-3 dB); 25 Hz (-10 dB)
PROGRAM POWER 3200W
CONTINUOUS POWER HANDLING 1600W
COLOURS Black

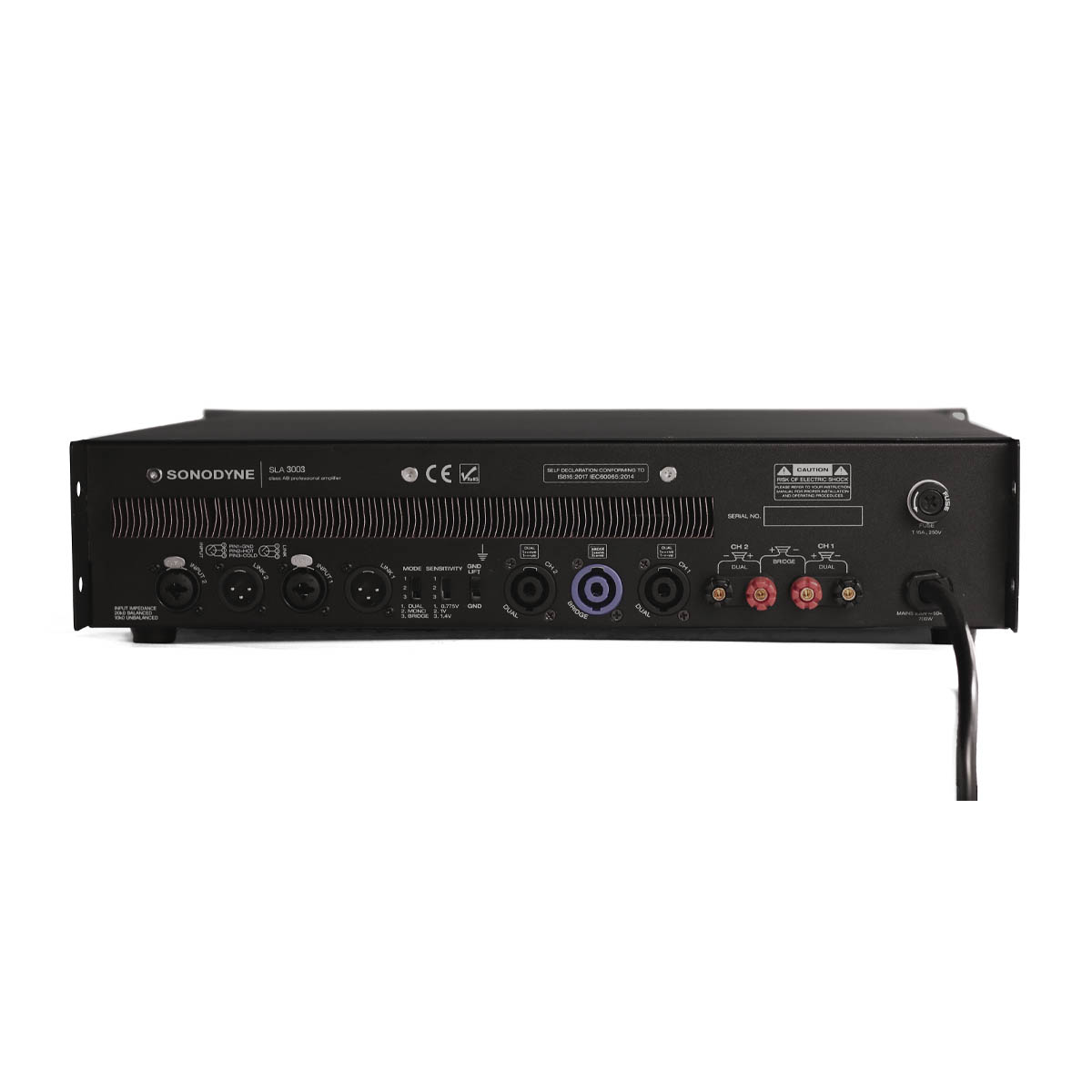

SLA 3003

SLA 3003 is a 2 channel, Class AB amplifier that delivers 450 watt / channel at 4 Ohm. Detailed specifications are given below

HIGHLIGHTS

  • Soft start
  • High SNR
  • Low THD, IMD
  • Heavy-duty power supply for high dynamic power
  • Short-circuit, thermal, output DC, RF protection
  • Variable-speed twin fan back-to-front cooling
  • Twist-lock and binding post output connectors
  • LED indicators for metering, status, and operating mode
  • Variable sensitivity selector

SPECIFICATIONS

NO. OF CHANNELS 2

OUTPUT POWER PER CHANNEL

8Ω: 300W
4Ω: 450W
8Ω BRIDGED: 1000W
THD AT RATED POWER <1%
DAMPING FACTOR >300
SIGNAL TO NOISE RATIO (20Hz ~ 20kHz) 100dB

OUTPUT CIRCUITRY

 AB
FREQUENCY RESPONSE

20Hz~20kHz, ±0.5dB
INPUT CONNECTORS EACH CHANNEL XLR with link
OUTPUT CONNECTORS EACH CHANNEL

Twist-lock connector and binding post
AMPLIFIER AND LOAD PROTECTION

Short circuit, output DC, thermal, RF protection

FRONT PANEL CONTROLS AND INDICATORS

Clip, Protect and Signal LED indicators, 42 detent rotary vol control

REAR PANEL CONTROLS

 3 position Slide switch for Mode - Dual, Mono, Bridge. 3 position Slide switch for Sensitivity – 0.775V, 1 V and 1.4V.

INPUT POWER
(as per BIS IS616:2017 IEC60065:2014/IEC62368-1

600W
DIMENSIONS (WxHxD) mm

483 x 462 x 88
NET WEIGHT 17kg
AGENCY APPROVALS

CE, BIS IS616:2017

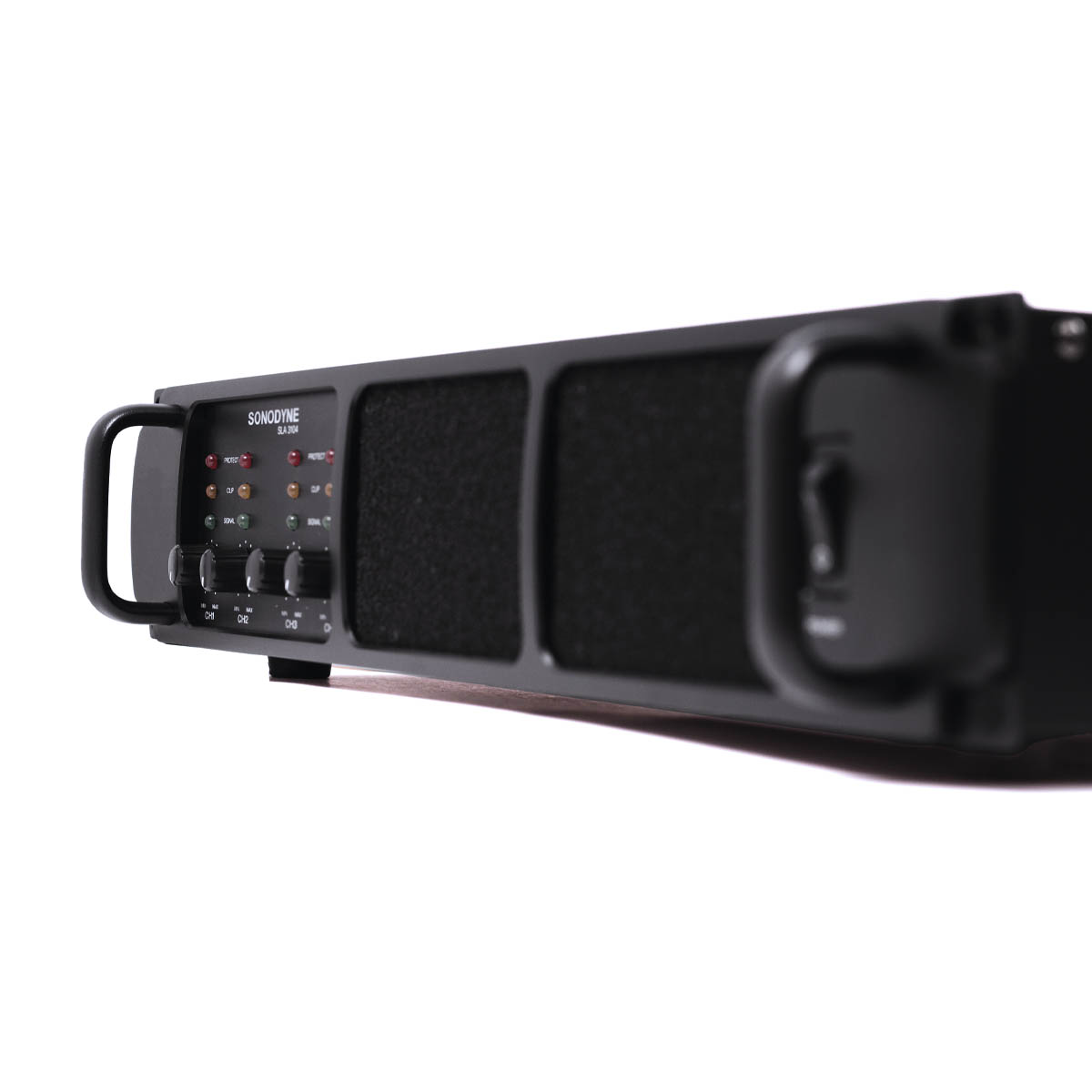

SLA 3106

SLA 3106 is a 4 channel, Class H amplifier that delivers 900 watt / channel at 4 Ohm. Detailed specifications are given below

HIGHLIGHTS

  • Soft start
  • High SNR
  • Low THD, IMD
  • Heavy-duty power supply for high dynamic power
  • Short-circuit, thermal, output DC, RF protection
  • Variable-speed twin fan back-to-front cooling
  • Twist-lock and binding post output connectors
  • LED indicators for metering, status, and operating mode
  • Variable sensitivity selector

SPECIFICATIONS

NO. OF CHANNELS 4

OUTPUT POWER PER CHANNEL

8Ω: 600W
4Ω: 900W
8Ω BRIDGED: 1800W
THD AT RATED POWER <1%
DAMPING FACTOR >300
SIGNAL TO NOISE RATIO (20Hz ~ 20kHz) 105dB

OUTPUT CIRCUITRY

 H
FREQUENCY RESPONSE

20Hz~20kHz, ±0.5dB
INPUT CONNECTORS EACH CHANNEL XLR with link
OUTPUT CONNECTORS EACH CHANNEL

Twist-lock connector and binding post
AMPLIFIER AND LOAD PROTECTION

Short circuit, output DC, thermal, RF protection

FRONT PANEL CONTROLS AND INDICATORS

Clip, Protect and Signal LED indicators, 42 detent rotary vol control

REAR PANEL CONTROLS

 3 position Slide switch for Mode - Dual, Mono, Bridge. 3 position Slide switch for Sensitivity – 0.775V, 1 V and 1.4V.

INPUT POWER
(as per BIS IS616:2017 IEC60065:2014/IEC62368-1

800W
DIMENSIONS (WxHxD) mm 483 x 446 x 88
NET WEIGHT 19.2kg
AGENCY APPROVALS

CE, BIS IS616:2017
